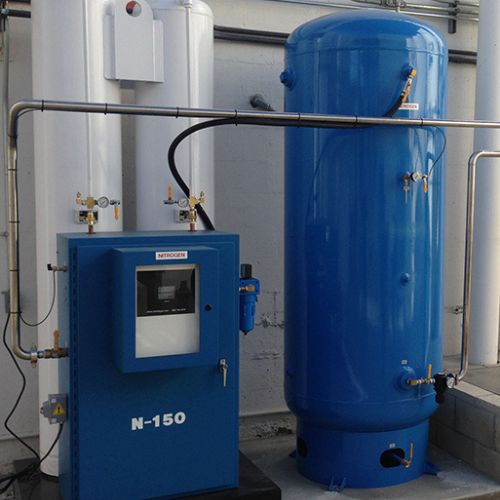

PSA Nitrogen Generation Plant
Our Nitrogen Generators operates on Pressure Swing Adsorption, commonly known as PSA Technology.PSA Technology is based on the selective adsorption phenomena of gas molecules under pressure on the surface of highly porous and efficient adsorbent, in this case of Nitrogen Generation the Adsorbent is carbon based Molecular Sieve (C.M.S.)
In PSA System when compressed air is passed through an adsorption tower field with C.M.S. the molecules of oxygen, moisture & other unwanted gases are adsorbed on surface of C.M.S. and Nitrogen which is not adsorbed by C.M.S. comes out of adsorption tower and is collected in a surge vessel. For continuous generation of nitrogen two Adsorption towers are provided which are interconnected with Auto-change over valves controlled by PLC in the control panel. After saturation of one tower with oxygen the process automatically changes over to another tower and thus the nitrogen production is continuous. Our systems are the best ones in industry to ensure the highest efficiency, User friendly design, Reliable Economical and Durable. Our onsite nitrogen generators are custom made and can be adjusted to give the desired nitrogen quality for your process and application. Safety Features and Audio-Visual Alarms The Nitrogen Gas Generator are Skid Mounted and Pre- commissioned at our works and are fully Automatic and requires virtually no attention of the Operator. Once started it can be left-unattended. All operations take place automatically and Nitrogen Purity remains very consistent. In case of any abnormality the gas Generator would trip automatically with Audio Visual Alarms for Necessary action. In case of Storage Tank Getting Filled the Gas Generator Goes to Sleep and restarts Once the pressure in storage Tank is Reduces to set Limit. Audio Visual alarms in our Standard System
Plant Features
- Air Compressor Trip
- Low Feed Air Pressure & High Air Inlet Pressure o Low Surge Tank Pressure
- High & Very High Oxygen Content - 2 Set
- High Moisture Content (Optional)
- High Storage Tank Pressure
